Model 28 Satin Stainless Steel Straight Connector up to 12.76mm


Model 28 180 Degree connector, 316 grade Stainless Steel Suitable for exterior use. Suitable for 6 – 12.76mm glass. Gaskets included. Please select glass thickness for correct gaskets. Complies fully with safety standard DIN/EN 12600. Safety pin extra (See related products).

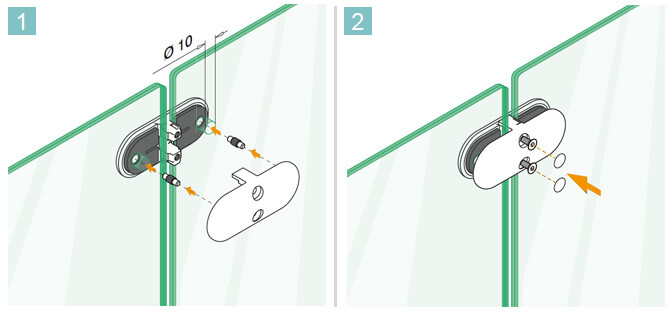

A 10mm hole is recommended if using a safety pin 30mm from the edge of the glass to the centre of the hole.

Download  Drawing for this product

Finish: Satin



SKU: 14.2200.700. 12 Category:

Additional information

Glass Thickness

6mm, 8mm, 8.76mm, 10mm, 10.76mm, 11.52mm, 12mm, 12.76mm
