Model 26 Tube Mount Stainless Steel Balustrade Clamp up to 12.76mm


316 grade Stainless Steel Suitable for exterior/interior use. Curved base for 42.4mm – 48.3mm tube. Suitable for 8mm – 12.76mm Laminate & 12mm glass. Gaskets included. Please select glass thickness for correct gaskets. Removable support shoe included for additional support. Complies fully with safety standard DIN/EN 12600. Safety pin extra if required. (See related products).

We recommend a 12mm hole if using Safety Pin. When using the support shoe place the clamp at the bottom of the glass for additional support, this can be removed to position the top or bottom clamp in an alternative location.

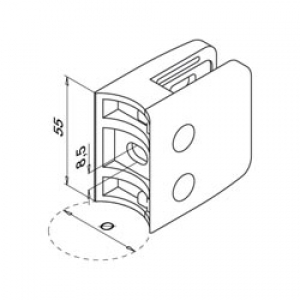

Dimensions: 55mm x 55mm
Finish: Satin



SKU: 14.2600.042.12 Category:

Additional information

Glass Thickness

8mm, 8.76mm, 10mm, 11.52mm, 12mm, 10.8mm, 12.8mm
