Barcelona Wall Mount Hinge
£34.75
Prices shown are exclusive of VAT

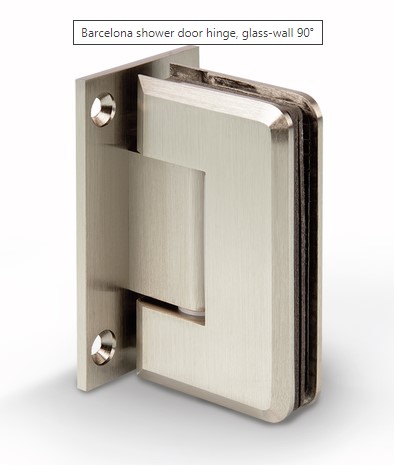

Barcelona 90 degree Glass to Wall Hinge, Constructed in Solid Brass, available in Chrome or Brushed Nickel (Stainless Steel Look). Suitable for 8 – 12mm glass.
Barcelona has a self-closing function up to an opening angle of approx. +/-15°. Outside this range, the hinge stops in any position
Hinge Swings: 90 degree in and 90 degree Out

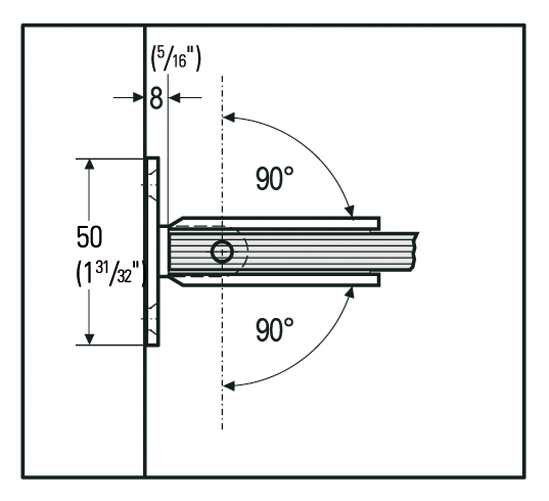

Maximum door weight 36kg a pair Maximum door width 800mm. See drawing for glass cut out detail. Distance from wall to glass is 8mm. View PDF here
Mounting screws not supplied.
Price per hinge.

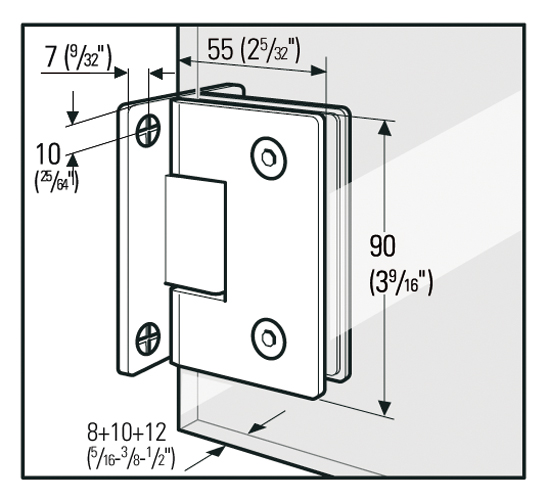

Dimensions: 55mm x 90mm
Delivery 1-2 days to UK mainland only
Free delivery on all orders over £130
View Delivery Info & rates
Additional information
| Finish |
|---|
